DRIVE SHAFT HOUSING M40C Tohatsu EPC Parts Catalog



M40C

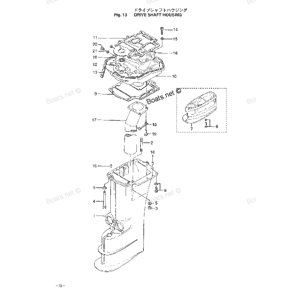

DRIVE SHAFT HOUSING



Parts on group DRIVE SHAFT HOUSING:

Pos. Part No Qty Parts name Comments
1. 345S61020-1 [1]   DRIVE SHAFT HOUSING "S" for transom "S"
10. 345S01301-0 [1]   ENGINE BASE
11. 345-01303-0 [1]   GASKET, ENGINE BASEMENT
12. 345-01215-0 [1]   OIL SEAL, 17-30-8
13. 345-67116-0 [2]   SEAL RUBBER, ENGINE BASE
14. 910203-0640 [2]   BOLT, ENGINE BASE
15. 941303-0600 [2]   SPRING WASHER
16. 345-01111-0 [4]   KNOCK, 6-12
17. 345-02314-0 [1]   EXHAUST PIPE, "S"
17. 345-02311-0 [1]   EXHAUST PIPE, "L" & "UL"
17. 345-02314-1 [1]   EXHAUST PIPE, "S"
17. 361-02311-0 [1]   EXHAUST PIPE, "L", & "UL"
18. 345-02313-0 [2]   LOCK PLATE, EXHAUST PIPE
19. 910113-0625 [4]   BOLT
2. 345-61111-1 [1]   STUD BOLT, DRIVE SHAFT, HOUSING "S" for transom "S"
20. 910613-0808 [1]   BOLT
21. 332-60006-0 [1]   GASKET, 8.1 -15 - 1
3. 930113-0800 [1]   NUT, DRIVE SHAFT HOUSING "S" for "S" = 7
32. 930106-0500 [1]   NUT
4. 916113-0885 [8]   BOLT for "L" - 8
5. 3P0-66233-0 [8]   WASHER, 8.1-16-1.5
6. 910113-5620 [1]   BOLT
7. 345S61110-0 [1]   EXTENSION HOUSING "UL" for transom "UL"
8. 910113-5840 [6]   BOLT
9. 345-61012-0 [1]   GASKET, DRIVE SHAFT HOUSING
